Energy Storage System

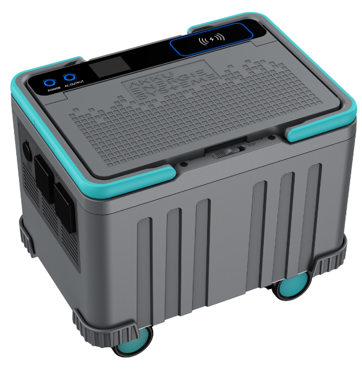

Portable Power Station

1、2 battery 48V 30Ah

2、1 energy storage box

3、1 mobility board

Spe.：2KW/2.88KWh

Product model: AESMPS230VCGXX

Product name: portable pluggable battery small energy storage

Battery type: lithium iron phosphate battery

External dimension: 510 * 412 * 350mm

Battery capacity: 1440Wh * 2

Mains charging: 2.5h

Solar panel charging: 4h

USB-A output * 2: Max.18W (5V-3.0A, 9V-2.0A, 12V-1.5A)

AC output * 2: Max.2300W (220~230V/50-60HZ)

USB-C output * 2: Max.18W (5V-3.0A, 9V-2.5A, 12V-2.0A)

Cycle life: 2000 times ≥ 80%

Power weight: energy storage box: 17.1kg; Battery * 2: 24.1kg“

Discharge temperature: -20~45 ℃

Charging temperature: 0~45 ℃

Ambient humidity: ≤ 75% RH

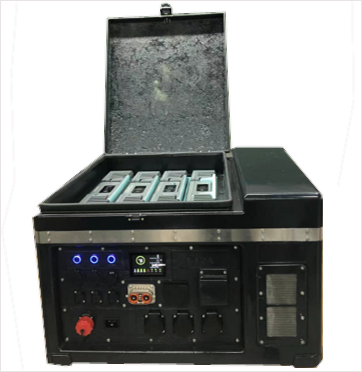

Portable Power Station

1、4 battery 48V 30Ah

2、energy storage box

3、1 mobility board

Spe.：3.6KW/5.76KWh

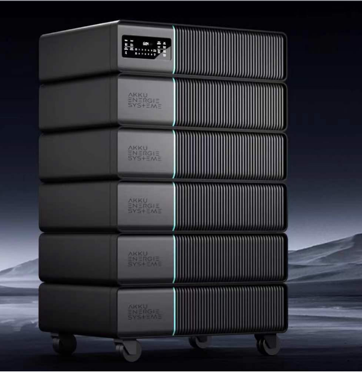

Energy Storage System(high voltage)

Spe.：5KW/11.52KWh

Optional：11.52KWh/17.2KWh/23KWh
